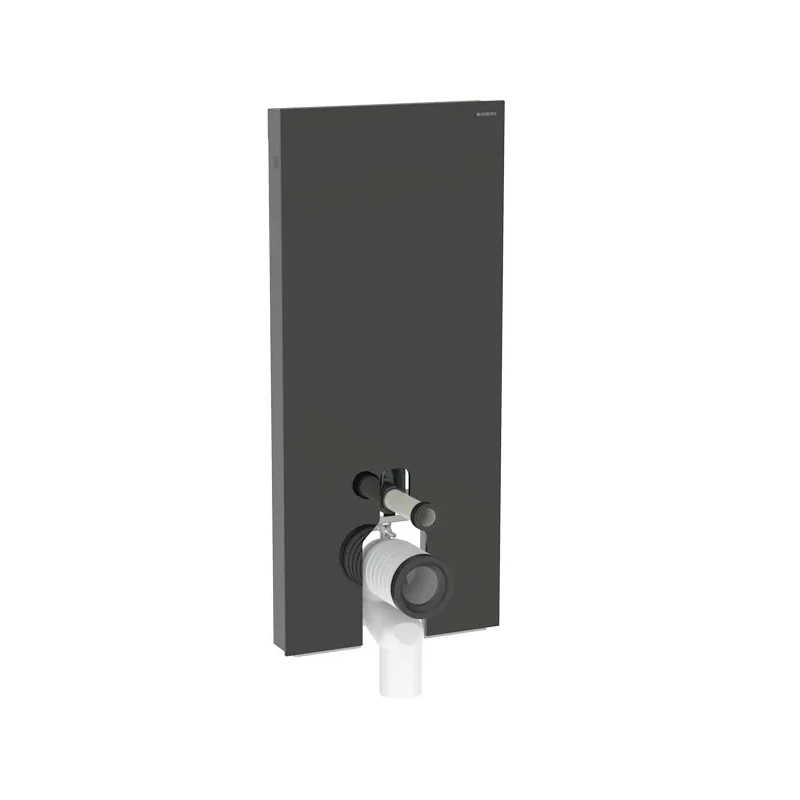

Geberit Monolith For Floor-Standing WC 114cm Black Glass/Black Chrome

Geberit Monolith sanitary module for floor-standing WC, 114cm, front cladding made of glass
Front cladding: black glass
Side cladding: black chrome aluminium
Glass thickness 8mm
Flow pressure 0.1-10 bar
Maximum operating temperature, water 25°C
Flush volume, factory setting 6 and 3 litre
Flush volume large, adjustment range 4.5 / 6 litre
Flush volume small 3 litre
Calculated flow rate 0.11 l/s
Minimum flow pressure for calculated flow rate 0.5 bar
For floor inlets
For renovations, conversions and new buildings
For wall inlets with an inlet height of 18cm
For replacing floor-standing WCs with concealed cistern with maximum service opening height < 109cm
For replacing low-level exposed cisterns
For replacing half-high level exposed cisterns
For replacing floor-standing WCs with close-coupled exposed cistern
For connecting Geberit AquaClean Tuma WC complete solution, floor-standing WC
For connecting Geberit AquaClean WC enhancement solutions, with accessories
For replacing pressure flushing valves
For mounting on finished floors
For installation in front of drywalls or solid walls
Dual flush
Compensation of dimensional tolerances possible
Cistern, fully insulated against condensation
Side cladding made of aluminium brushed
Self-supporting
Adjustable flush volume
Water supply connection on the rear centre
Water supply connection on the left/right possible with accessories
Water supply connection on the bottom

Scope of Delivery:
Water supply connection set with 2 angle stop valves, 1/2″
Flush bend extension 160mm
Connection bend made of PP, diameter 90mm
Sleeve made of EPDM,?diameter?44 / 55mm
Adaptor socket made of PE-HD, diameter 90 / 110mm
Fastening material
Base cover
Fastening material for drywall
