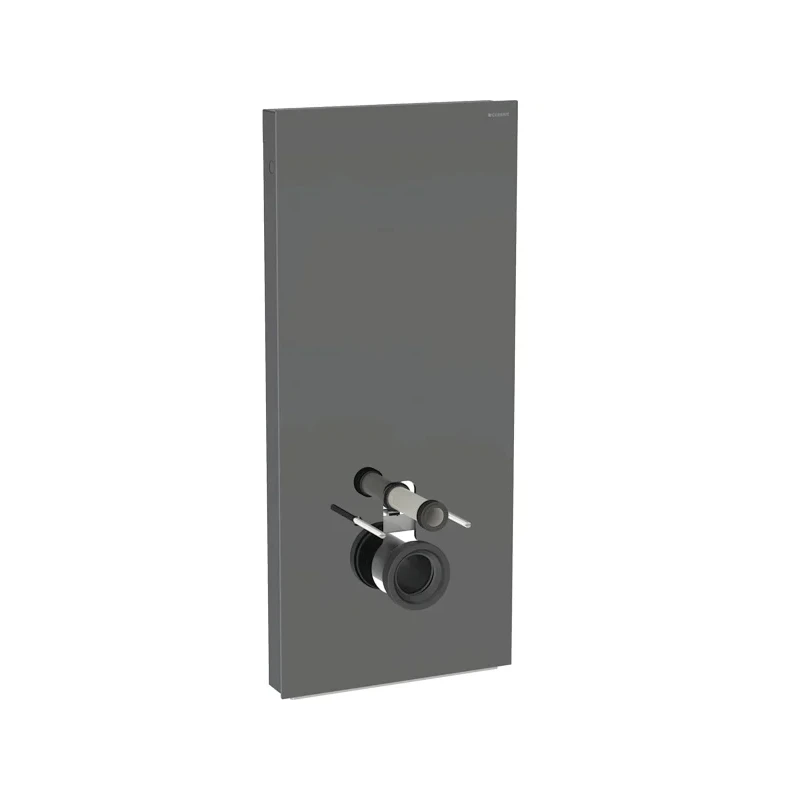

Geberit Monolith Plus For Wall-Hung WC 114cm Lava Glass/Black Chrome

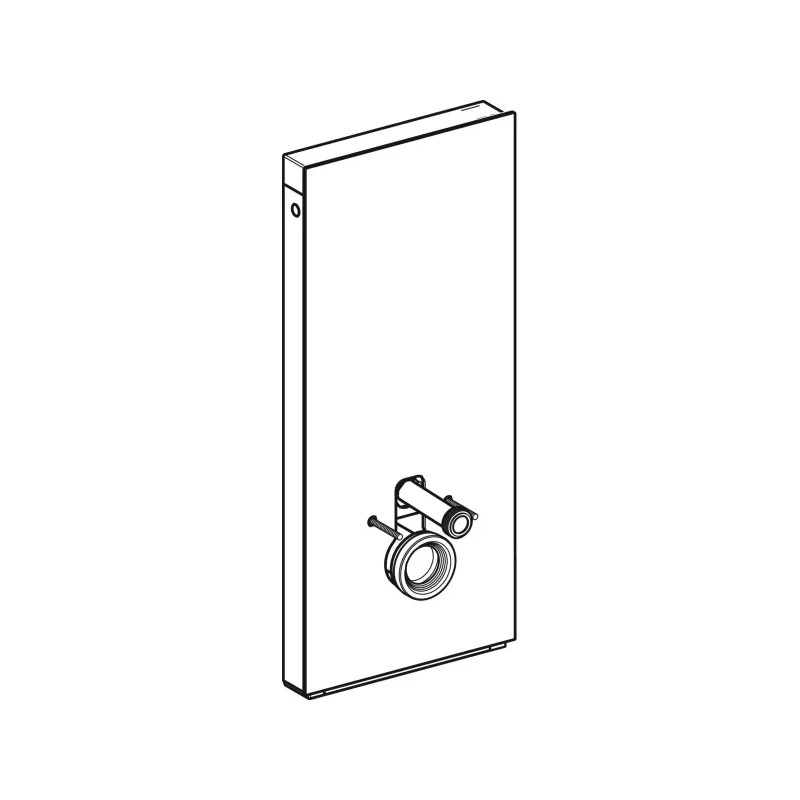

Geberit Monolith Plus sanitary module for wall-hung WC, 114cm, front cladding made of glass
Front cladding: lava glass
Side cladding: black chrome aluminium
Glass thickness 8mm
Protection degree IPX4
Protection class I
Nominal voltage 100-240 V AC
Mains frequency 50-60 Hz
Operating voltage 4.1 V DC
Power consumption 5 W
Flow pressure 0.1-10 bar
Maximum operating temperature, water 25°C
Flush volume 6 litre
Flush volume small 3 litre
Calculated flow rate 0.11 l/s
Minimum flow pressure for calculated flow rate 0.5 bar
For renovations, conversions and new buildings
For wall inlets with inlet height > 23cm
For replacing low-level exposed cisterns
For replacing half-high level exposed cisterns
For replacing wall-hung WCs with close-coupled exposed cistern
For replacing wall-hung WCs with pressure flushing valve
For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109cm
For Geberit AquaClean WC complete solutions
For connecting Geberit AquaClean WC enhancement solutions, with accessories
For mounting on finished floors
For installation in front of drywalls or solid walls
For compensating the offset between WC connections and wall drains using a stepped straight connector for wall-hung WCs
Dual flush
Compensation of dimensional tolerances possible
Height-adjustable up to 7cm
Fastening height WC ceramic appliance 35 +/- 1cm
Cistern, fully insulated against condensation
Side cladding made of aluminium brushed
Self-supporting
Soft-touch buttons for flush actuation and odour extraction
Orientation light and odour extraction activated when a user approaches
Orientation light can be set in seven colours
User detection range can be set
Day/night detection can be set for orientation light
Odour extraction unit with ceramic honeycomb filter can be installed without tools
Ceramic honeycomb filter for odour neutralisation can be replaced without tools
Odour extraction unit automatically switches off after a predefined running time
Operation with extra-low voltage, no mains voltage in cistern
Mains connection with flexible three-wire sheathed cable
Water supply connection on the rear centre
Water supply connection on the left/right possible with accessories
Water supply connection on the bottom

Scope of Delivery:
Water supply connection set with 2 angle stop valves, 1/2″
Flush bend extension 160mm
Sleeve made of EPDM,?diameter?44 / 55mm
Straight connector made of PE-HD, diameter 90mm
Adaptor socket made of PE-HD, diameter 90 / 110mm
2 threaded rods M12
Sound insulation set
Female socket for mains connection
Power supply unit
Base cover
Fastening material for drywall
Fastening material
Fastening material for installation in front of concealed cisterns
