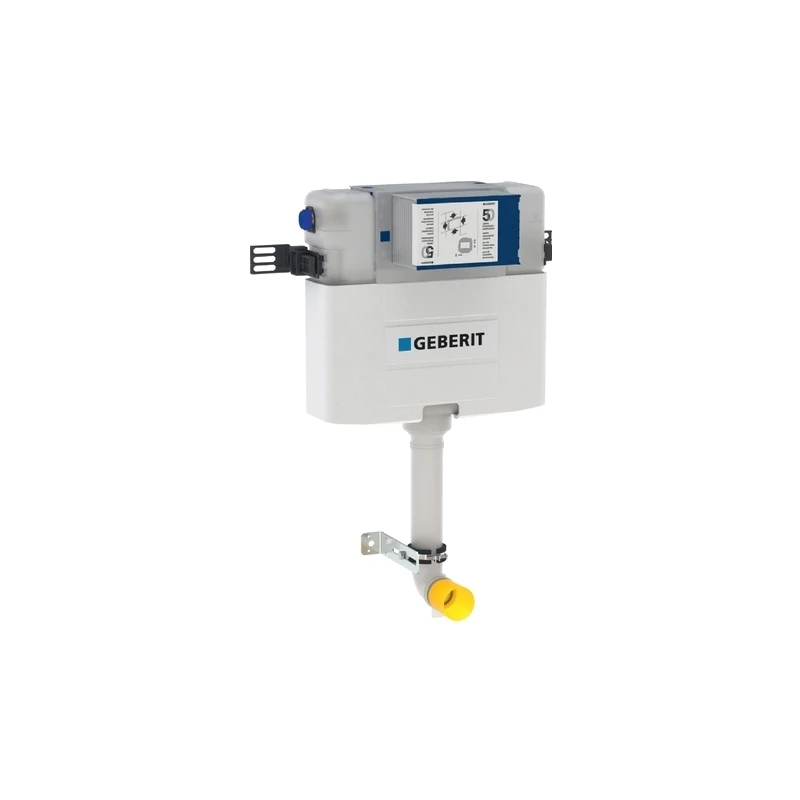

Geberit Omega Concealed Cistern 12cm, Height 108cm

Geberit Omega concealed cistern 12cm, 6 / 3 litres, installation height 106cm
For masonry walls
For installation in part- or room-height prewall installations
For installation in room-height installation walls
For floor-standing and wall-hung WCs
Adjustable in depth
Concealed cistern with front actuation
Concealed cistern fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory setting
Welded flush bend
Tool-free installation and maintenance work on concealed cistern
Water supply connection on the left or rear left
Protection cover box for service opening protects against moisture and dirt
Protection box for service opening can be cut to length
Flow pressure 0.1-10 bar
Maximum operating temperature, water 25°C
Flush volume, factory setting 5.8 and 3 litre
Flush volume large, adjustment range 4.5 / 6 / 7.5 litre
Flush volume small, adjustment range 3-4 litre
Calculated flow rate 0.11 litre/second
Minimum flow pressure for calculated flow rate 0.5 bar
